Germany 600w Mppt Solar System Kit Flexible Balcony Garden Panel On-grid Tied Home System With 800w Pv Power Load

SHARE THIS PRODUCT

Product Description

Balcony installation system kit parameters

Product name	Description	Quantity
Grid tied micro inverter	GTB-800 Smart 800W micro inverter	1PCS
Mono solar panel	STC400 Mono 400W solar panel	2PCS
Balcony Mount Bracket	Inclined mounting(vertical mounting optional)	2PCS

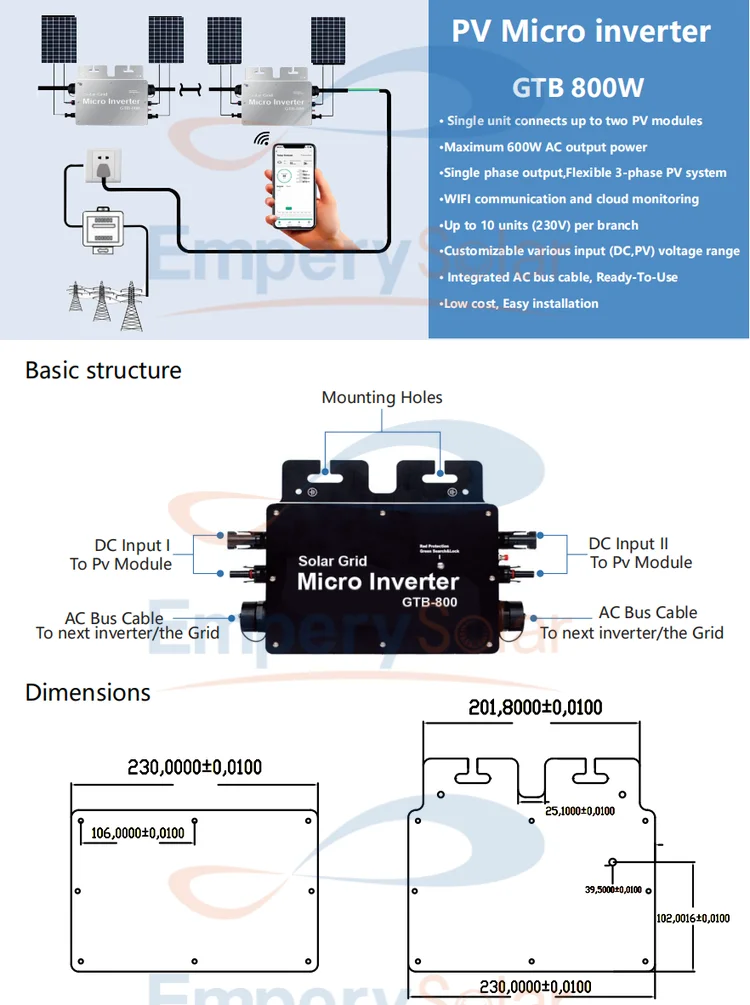

Grid tied micro inverter
Input Voltage:22/50V
Output Voltage:80/160VAC-180/280VAC
Output Current:5/2.6A
Output Frequency:48-51HZ/58-61HZ
Size:310X200X40mm
Inverter Efficiency:95%
Certificate:CE
Warranty:5 Years
Weight:1.8KG
Protection:IP65

Mono-crystalline silicon solar cells

Maximum power at STC(Pmax):400W

Optimum operating voltage(Vmp):37.78V

Optimum operating current(Imp):10.59A

Open-circuit voltage(Voc):43.50V

Short-circuit current(Isc):11.33A

Short-circuit current temperature coefficient:(0.065±0.015)%/℃

Open-circuit voltage temperature coefficient:-(80±10)mV/℃

Peak power temperature coefficient: -(0.5±0.05)%/℃

NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s): 47±2℃

Operating temperature :-40℃ to 85℃

Maximum system voltage :1000V DC

Power tolerance :±3%

Dimension of module: 1723mm×1134mm×35mm

Weight :20.90kg

Balcony Mount Bracket(vertical mounting)
Installation Site: Balcony
Panels: Solar panel for any size
Structural materials: Aluminum
Survival wind speed:Up to 50m/s Design
snow pressure: Up to 1.4KN /m2
Inclination:0°-60deg
Certificate: CE TUV UL
Warranty: 15 years
Life: Design Life for 25 years
